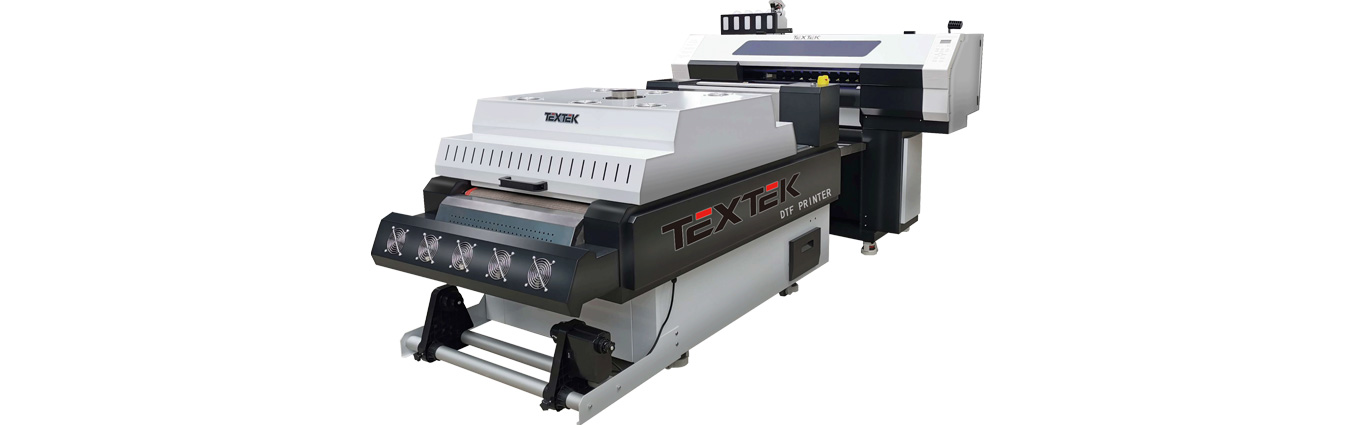

60cm DTF Printer Pro

Direct To Film Printer TK602

Printhead: 2*EPSON I3200-A1
Printing Speed: 15sqm/h
Print Width: 60cm(24 inch)
Ink: CMYK+W Pigment Ink
Ink Color: 4/8 Color Printing
RIP Software: Maintop, Photoprint

Send Inquiry

Send Email

Wechat:0086 173 2010 3955

Whatsapp:0086 173 2010 3955

Feature Details Specification Video Application Inquiry

Feature

Unlimited fabric, dark & light-colored polyester, nylon, cotton fabric, etc.

High cost performance, mass printing and DIY printing meet at same time.

No pre-procoating, reducing printing procedures and improving efficiency.

Support CMYK+W printing, high color fastness, no color deviation.

Printed clothes are washable and soft to touch.

Print head is fixed, no need to debug, simple operation.

Details

Original EPSON Printhead

2*Epson I3200-A1 printhead, stable and high speed production performance.

Constant Tension Paper Feeding

Ensure that material does not deviate during paper feeding process, reducing waste.

LED Light Bar

Clearly see the color ink printing status and whether there is any disconnection.

Ink Supply System

Ink supply pressure circulation system is controlled by air pressure to ensure the stability of ink supply.

Capping Station

Integrated lifting capping station, with timing flash jet function, the better maintenance of print head.

White Ink Circulation System

White ink is automatically circulated and stirred to prevent sediment from clogging nozzle.

Powder Shaking Machine

Intelligent PLC touch screen control system, automatically complete the heating process.

Guide Belt Conveyor

With automatic correction function to ensure stepping accuracy.

Specification

Model		Tk602 DTF Printer
Printhead		2*Epson I3200-A1
Printing Speed	High Speed Mode	15㎡/h
	HD Mode	10㎡/h
Ink Color		CMYK+W
Print Format		600mm (24 inch)
Media Transfer		Damping Paper/Tension Paper
Heating Equipment		Front, Middle and Back Three-Stage Heating
Ink Road System		Automatic Ink Supply, White Ink Circulating and Stirring
Power Supply		110V/220V 50-60HZ
Power		1.5KW
Working Environment		Temperature 20-28℃ Humidity 50-70ph
Package Size/ Weight		203100134cm 280kg
Cover Area		1.8*3.5M
Model		TK600 Shake Powder Machine
Power		5kw
Package Size/ Weight		203113120cm 320kg

Video

Related Applications
