4 Heads & 60cm Printer

Large DTF Printer TX65-4

Printhead: 4*EPSON I3200-A1
Printing Speed: 28sqm/h
Print Width: 60cm(24 inch)
Ink: Pigment Ink
Ink Color: CMYK+W
RIP Software: Maintop, Photoprint

Send Inquiry

Send Email

Wechat:0086 173 2010 3955

Whatsapp:0086 173 2010 3955

Feature Details Specification Video Application Inquiry

Features

Equipped EPSON I3200-A1 printhead,4 pass printing speed 28 sqm/h.

High efficiency,High cost performance

Wide applications,design for textile printing

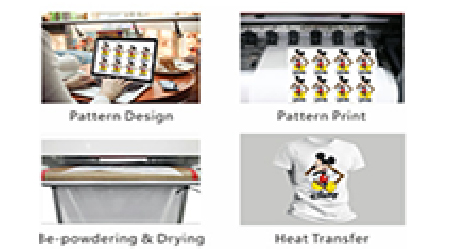

Complete production solution,low-cost invest,big profits

Easy to operate,max support 9 gray scale

Environment friendly and energy conservation

Printer Details

Specially Designed Car

The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.

Taiwan HIWIN Linear Guide

Using Taiwan HIWIN linear guide, the movement is more stable and the life is longer.

Advanced Capping Station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.

Chinese Leadshine Motor

The two-way Leadshine brushless motor has higher accuracy, smaller length error and more stable performance.

Fluororubber Pressure Roller

US fluororubber pressure roller prevents static electricity.The unique lifting device can respond to the phenomenon of partial paper bulging during the printing process.

Germany IGUS Ink Chain

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.

High Precision Platform

The printing platform is controlled within ±7.5 wires and the surface hard oxidation treatment, no deformation for a long time.

Large Capacity Ink Reservoirs

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously.

Specification

Model	TX65-4
Printhead	4*Epson I3200-A1/ 4720/XP600
Print speed	4pass 28sqm/h
Print speed	6pass 21sqm/h
Print Width	62cm (24 inch)
Ink Colors	C M Y K + W
Ink Type	Pigment Ink
Consumption	CMYK is 15-20ml/sqm, CMYK+W is 25ml/sqm
RIP Software	Maintop/Photoprint
Interface	USB2.0 USB3.0
Print File Format	BMP, TIF, JPG, PDF Etc.
Heating System	Front ,Middle,Rare Heating System
Feeding Method	Roll to Roll, Leaf
Color Management	ICC Based; Density & Curves Adjustable
Power Supply	50HZ/60HZ, 220V, 10A
Packing Size (LWH)	1840800780mm
Machine Weight	115KG
Working Environment Temperature	20C-35C (68F-95F)
Working Environment Humidity	35%-65%Rh
